This programming can be used to program all ZTW Mantis Series brushless ESCs quickly and easily except for the Mantis 6A ESC.
Note: ONLY compatible with ZTW Mantis-Series ESCs. Cannot be used to program ZTW Gecko Series or other ZTW ESCs.
Brake setting (off/soft/mid/hard -- default: off)
Battery type: (Ni-XX/LiPo/LiFe -- default: LiPo auto detect)
Low voltage cutoff setting (2.8V / 3.0V / 3.2V / None -- default: 3.0V)
Factory default setup reset Timing settings (auto / 2Â° / 5Â° / 8Â° /15Â° / 22Â° /30Â° -- default: auto)
SBEC output voltage (on 45A and larger models only) (5.0V / 5.5V / 6.0V -- default: 5.0V)
Governor mode (RPM off / 1st soft start / 2nd soft start / gov mod 1 / gov mod 2 -- default: RPM off)
Motor rotation (forward / reverse -- default: forward) vStart-up strength (10% / 15% / 20% / 25% / 30% / 35% / 40% / 45% / 50% -- default: 30%)
Low voltage cutoff type: (reduce power / cut-off power -- default: reduce)
How to Use the LED Program Card:
1.ZTW Program card with LED display is easy to use and convenient to carry. All of the programmable functions are shown on the program card.
2.Turn on the ESC. Remove the signal wire and plug it into the top-socket on the program card wait for 2 seconds until the LED is on.
3.If ESC is not connected with the batteries the program card should be connected with other power supply the range of power supply is from 5.0V to 6.3V.
4.Press the button â€Menuâ€ on the program card and circularly select each programmable function. At that time the number of programmable function will be displayed on the left of the LED the current value will be displayed on the right side. Then press the button â€œValueâ€ to change the value and press the button â€œOKâ€ to confirm. At the same time the Red indicating LEDs of both program card and the ESC will blink. Turn off the ESC the modified settings will be saved in the ESC`s memory.
5.Press the button â€œResetâ€ to restore the default settings.

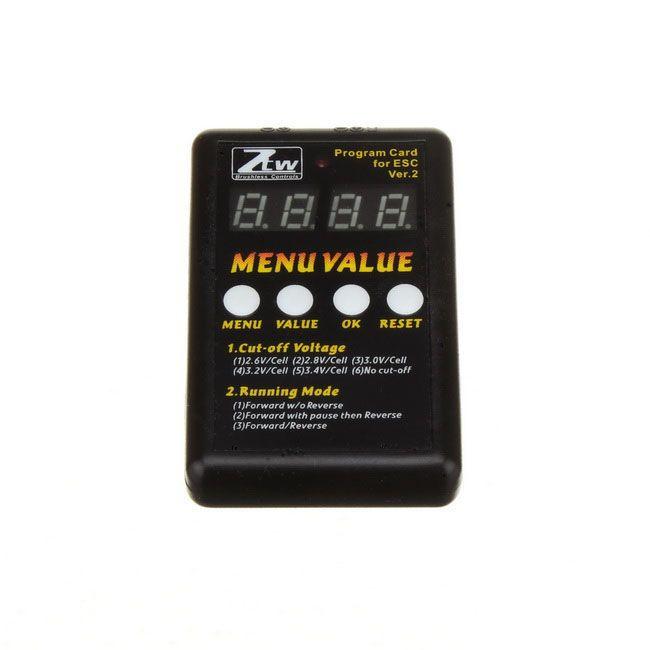

ZTW-Mantis Series Air ESC programming card
Barcode # ã€€
Continuous Current DC 5.0Vï½ž12.0V
Upgrade Firmware online (Yes/No) no
