ZTW Skyhawk 125A SBEC Series ESC for Airplane and Helicopter

ZTWSKU: ZTW-SKH-125

Price:
Sale price$99.00

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
Mike C.
Great ESC

I started out with a 80 amp ESC and eventually would heat up and misbehave. Got this 125 amp equipped with a cooling fan no more issues. I should have stepped up in the beginning . I’m running 550kv with 4000 6c batteries.

Download Manual

Description

ZTW Skyhawk 125A SBEC Series ESC for Airplane and Helicopter
Skyhawk Series ESC Specs 125A)
Product Name Skyhawk 125A SBEC

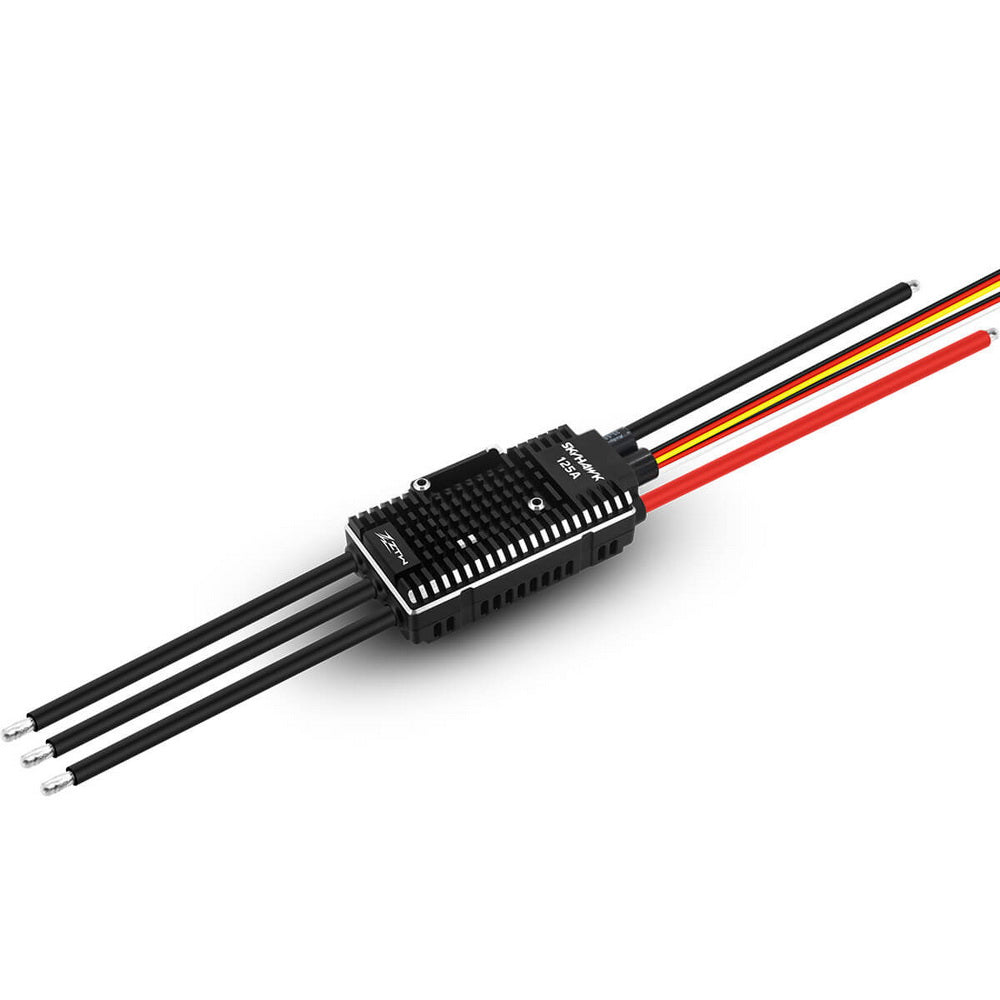

Product Picture
PN#Model 4125211
Power Wires 10# 160mm (Red*1/Black*1)
Motor Wires 10# 160mm (Black*3)
Signal Wires    60C   400mm / Yellow,Red,Black    3P/JR*2     60C   400mm / White,Red,Black     3P/JR
Data wires (For telemetry) 30C 400mm / Yellow     1P/JR
Plug EC5
Gold Connectoer 4.0
Continuous Current 125A
Burst Current 140A
Input Voltage 3-8S LiPo
BEC Output  6.0,7.4,8.4V adjustable /10A
CPU Frequency 170MHz
Programming Way LCD Program Card G2/Android&IOS APP
Telemetry Supported
Governor Mode Supported
Firmware Upgrade Supported
Anti-ignition Function No
Applications 1.500-550 Class Heli(Main Blade:470-575mm)
2.70-.90 Class Fixed-wing Airplane 3D
Size 87.0*40.0*32.0mm
Weight 171g
