Description

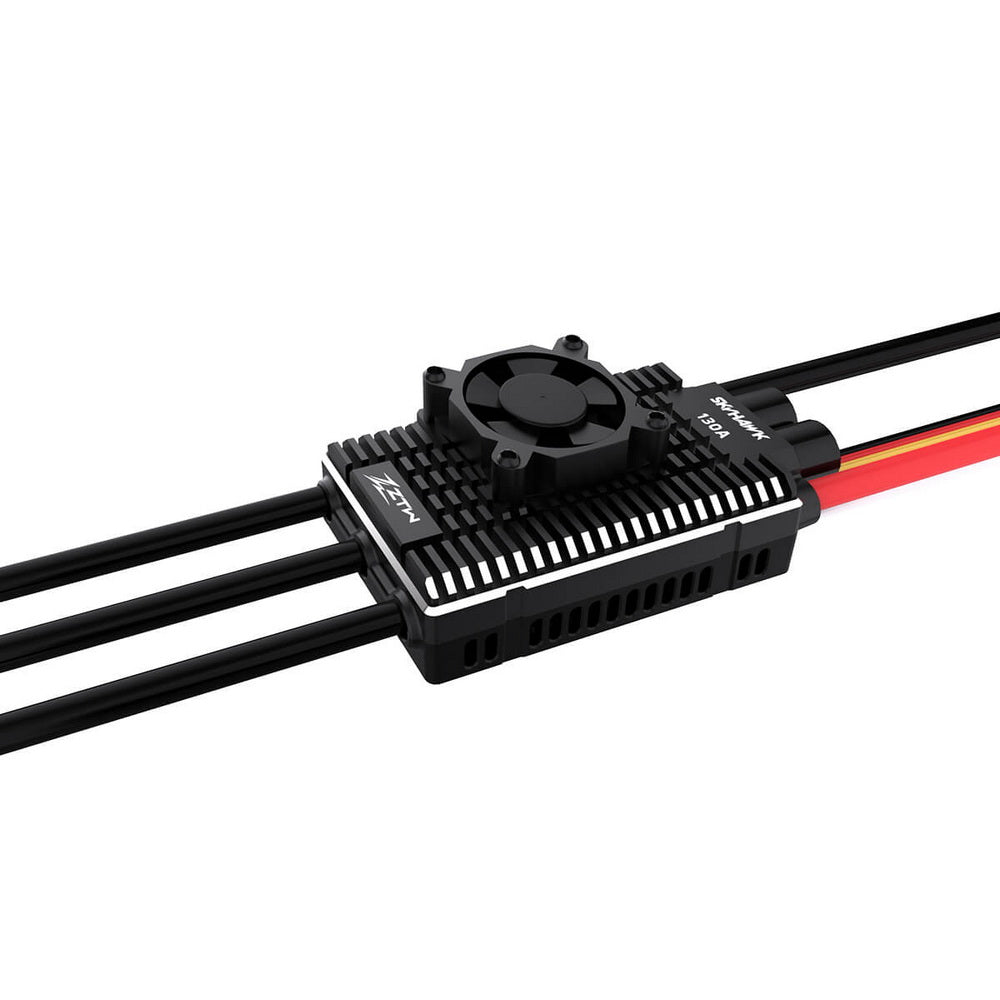

ZTW Skyhawk 130A HV SBEC Series ESC for Airplane and Helicopter
| Skyhawk Series ESC Specs 130A) | ||
| Product Name | Skyhawk 130A HV SBEC | |
| Product Picture | ||
| PN#Model | 4130311 | |
| Power Wires | 10# 160mm (Red*1/Black*1) | |
| Motor Wires | 10# 160mm (Black*3) | |
| Signal Wires | 100C 500mm / Yellow,Red,Black 3P/JR*2 100C 500mm / White,Red,Black 3P/JR |
|
| Data wires (For telemetry) | 30C 500mm / Yellow 1P/JR | |
| Plug | EC5 | |
| Gold Connectoer | 5.5 | |
| Continuous Current | 130A | |
| Burst Current | 150A | |
| Input Voltage | 6-14S LiPo | |
| BEC Output | 6.0,7.4,8.4V adjustable /10A | |
| CPU Frequency | 170MHz | |
| Programming Way | LCD Program Card G2/Android&IOS APP | |
| Telemetry | Supported | |
| Governor Mode | Supported | |
| Firmware Upgrade | Supported | |
| Anti-ignition Function | Yes | |
| Applications | 1.550-600 Class Heli(Main Blade:550-690mm) 2.90-.140 Class Fixed-wing Airplane, 2m FAIF3A&3D |
|
| Size | 95.0*50.0*36.0mm | |
| Weight | 236g |
